Most Jeep fuse boxes sit under the dash or inside the engine bay near the battery.
I have spent years working on Jeeps and helping owners find fuses fast. This guide shows clear steps and model tips for how to locate jeep fuse box. Read on for practical tips, safety steps, and quick troubleshooting that save time and prevent mistakes.
Where Jeep fuse boxes are typically located
Jeep fuse boxes are usually in two places. One is inside the cabin near the dash. The other is in the engine bay near the battery or inner fender. Some models add a small rear or cargo-area fuse panel for accessories.
Common interior locations:
- Under the driver-side dashboard, near your knees.
- Behind a small plastic panel on the side of the dash.
- Under the glove box on a few older models.
Common engine-bay locations:
- Near the battery on the passenger side.
- On the inner fender well close to the strut tower.
- In a sealed plastic box with a snap-on cover.
Knowing these typical spots makes how to locate jeep fuse box quick and predictable. My first Jeep had its fuse box tucked under a trim panel, which taught me to check for hidden clips. Simple checks often save a tow or service visit.
How to locate jeep fuse box step-by-step
Follow a short routine. It helps you find fuse boxes fast and safe.
- Park and cut power.
- Park on level ground. Turn the engine off. Remove the key. Disconnect accessories.
- Scan the driver's side.
- Kneel on the driver side. Look under the dash and to the left of the steering column. Feel for a plastic panel.
- Check the passenger side.
- Open the glove box and look behind or below it. Pull down any trim panels that snap off.
- Open the engine bay.
- Pop the hood. Stand to the front-left of the engine. Look for a black plastic box near the battery.
- Look in the cargo area.
- Open the rear hatch and inspect side panels and rear trim pockets.
- Verify with diagrams.
- Remove the panel cover. The inside of the cover or the owner’s manual shows a fuse map. Match labels to the circuit you need.
These steps cover most scenarios for how to locate jeep fuse box. I repeat these steps on every Jeep I work on. They are quick and reliable.
Model-specific locations and quick tips
Different Jeep models place fuse boxes in different spots. Here are concise notes by model.
- Wrangler (JK, JL)
- Primary box under the dash left side. Engine bay box near the battery on newer models.
- Cherokee (KL)
- Interior panel under dash. A larger power distribution box in the engine compartment.
- Grand Cherokee (WK2, WK)
- Interior fuse block under the instrument panel. Engine bay power box near the right fender.
- Compass and Patriot
- Small interior fuse box behind dash panels. Engine bay near battery for major relays.
- Renegade
- Interior fuse box under the glove box. Engine compartment fuse box at front.
If you own a rare or older Jeep, factory service manuals and the owner’s manual will confirm exact locations. When I worked on a 2006 model, the panel was hidden behind a carpet flap. Be gentle with trim clips.

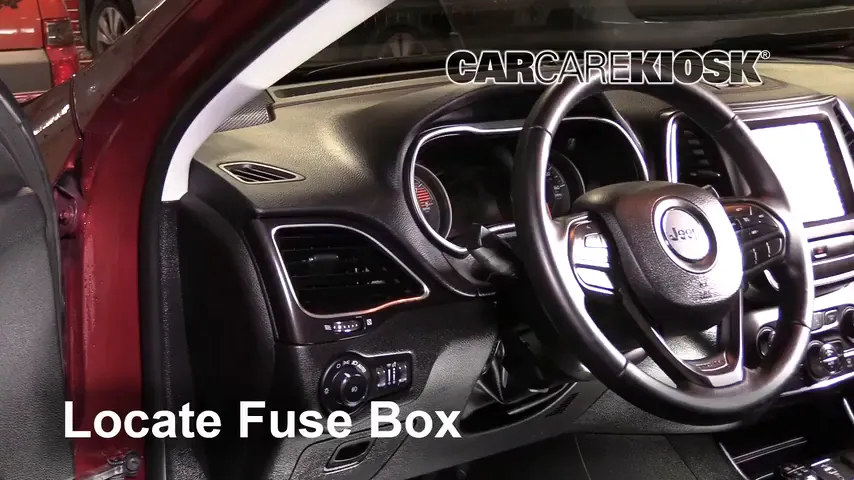

Reading fuse diagrams and identifying fuses
A fuse diagram saves time. It shows which fuse controls what. Match the label to the circuit and amperage.
How to read the diagram:
- Find the fuse map on the underside of the panel cover or in the owner’s manual.
- Note fuse number, amp rating, and function.
- Identify blade fuses, mini fuses, and Maxi fuses by size.
Tips for identification:
- Use a fuse puller or needle-nose pliers to remove fuses.
- Inspect the metal strip inside the fuse. A broken strip means the fuse blew.
- Replace only with the same amp rating. Never use a higher amp fuse.
Knowing how to locate jeep fuse box is only half the job. Reading the diagram prevents mistakes and accidental damage. I learned to double-check amp ratings after a short caused a melted connector.
Tools, safety tips, and best practices
Small tools and safe habits make fuse work easy and safe.
Essential tools:
- Flashlight for tight spots.
- Fuse puller or needle-nose pliers.
- A set of spare fuses with common amps.
- Owner’s manual or printed fuse diagram.
Safety tips:
- Turn engine and accessories off before touching fuses.
- Remove the key to avoid electric surprises.
- Replace fuses one at a time and test circuits.
- If a new fuse blows immediately, stop and diagnose the short.
Best practices:
- Label panels if you modify wiring or add accessories.
- Keep spares in the glove box or toolbox.
- Use OEM or exact-spec fuses only.
These practices make how to locate jeep fuse box safer. Early in my career, I once replaced a fuse while the key was in ON and learned to always remove the key first.
Common problems, troubleshooting, and quick answers
Common fuse problems:
- A blown fuse from a shorted wire.
- Corroded fuse terminals causing intermittent power.
- Wrong fuse size used during repairs.
Troubleshooting steps:
- Confirm the component is off and remove the suspect fuse.
- Swap with a known good fuse of the same amp for testing.
- Trace wiring if a repeated fuse failure occurs.
Common questions and short answers:
- Where is the main fuse box under the dash?
- It is often left of the steering column or behind the lower dash panel.
- What if a fuse blows repeatedly?
- That points to a short or faulty device. Inspect wiring and devices.
- Can I bypass a fuse to test?
- Do not bypass. Use correct fuses or a fused test lead.
These quick checks help you diagnose after you learn how to locate jeep fuse box. When a fuse kept blowing on my Jeep, tracing a chafed wire fixed it quickly.
Frequently Asked Questions of how to locate jeep fuse box
Where is the fuse box on a Jeep Wrangler?
Most Wrangler models have an interior fuse box under the driver-side dash and an engine bay box near the battery. Check the owner’s manual for exact placement on your year.
How do I open the fuse box cover?
Press the tabs or use a flat tool to lift the plastic cover. The underside often shows the fuse map for quick reference.
What size fuse does my Jeep use?
Jeeps use blade fuses in various sizes: mini, regular, and Maxi. The fuse map or owner’s manual lists exact amp ratings for each circuit.
Can I replace a blown fuse with a higher amp fuse?
No. Using a higher amp fuse risks wiring damage and fire. Always replace with the same amp rating.
How do I find a blown fuse without a meter?
Remove and visually inspect the fuse. A broken metal strip means it is blown. Swap with a known working fuse if unsure.
Conclusion
Finding and working with fuses is simple with the right steps. Remember to park, cut power, check both the dash and engine bay, and use the fuse map. Take safety seriously and use the correct fuse ratings. Try the steps on your Jeep today and save time and money on small electrical issues. Leave a comment if you need help with a specific Jeep model or subscribe for more hands-on guides.
